25W Induction Gear Motor

25W Induction Gear Motor

25W 80mm

Specifications

Model • Type Output Voltage Frequency Current Starting Rated Rated Capacitor
Upper: Pinion Shaft power Torque Torque Speed
Below: Round Shaft
Lead Wire Type Terminal Box Type W V Hz A mN.m mN.m r/min μF

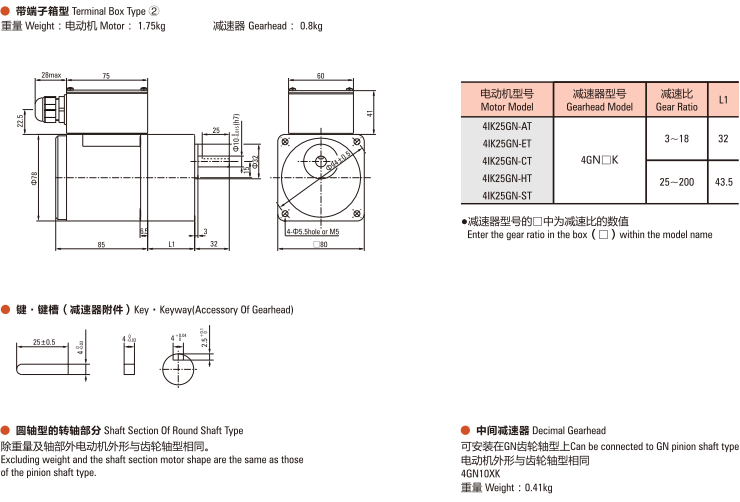

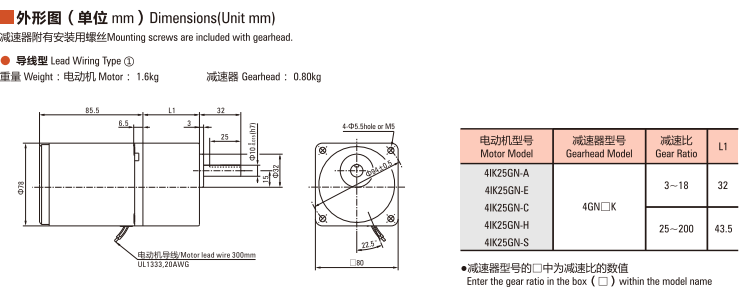

Dimensions Dimensions
4IK25GN-A 4IK25GN-AT 25 1ph 100 50 0.50 120 200 1250 8.0
(4IK25A-A ) (4IK25A-AT) 60 0.55 165 1550
4IK25GN-E 4IK25GN-ET 25 1ph 110 60 0.45 120 165 1550 7.0
(4IK25A-E ) (4IK25A-ET) 1ph 120 0.5
4IK25GN-C 4IK25GN-CT 25 1ph 220 50 0.25 120 200 1250 1.8
(4IK25A-C ) (4IK25A-CT) 1ph 230 0.23
4IK25GN-H 4IK25GN-HT 25 1ph 220 60 0.23 120 165 1550
(4IK25A-H ) (4IK25A-HT) 1ph 230
4IK25GN-S 4IK25GN-ST 25 3ph 220 50 0.185 350 200 1250 -
(4IK25A-S ) (4IK25A-ST) 60 0.170 250 165 1550

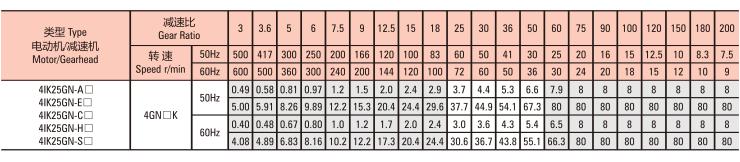

Allowance Torque Unit: Upside ( N.m ) / Belowside ( kgf.cm )
