40W Induction Gear Motor

40W Induction Gear Motor

40W 90mm

Specifications

Model • Type Output Voltage Frequency Current Starting Rated Rated Capacitor
Upper: Pinion Shaft power Torque Torque Speed
Below: Round Shaft
Lead Wire Type Terminal Box Type W V Hz A mN.m mN.m r/min μF

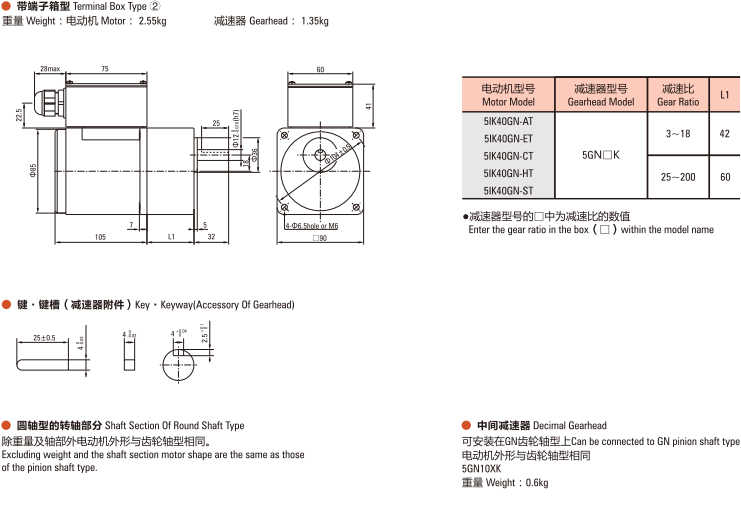

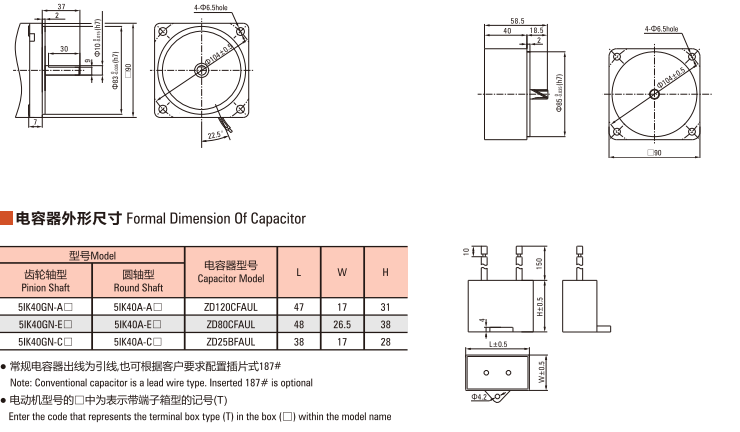

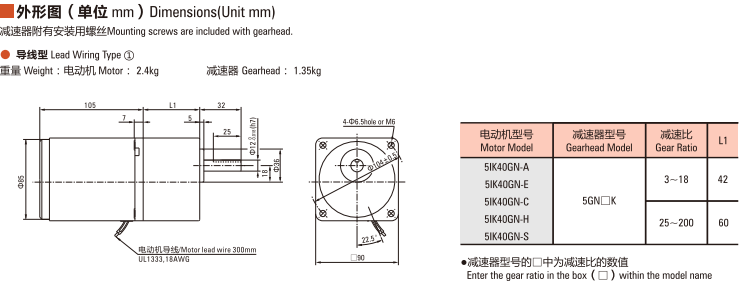

Dimensions Dimensions
5IK40GN-A 5IK40GN-AT 40 1ph 100 50 0.65 220 315 1250 12.0
(5IK40A-A ) (5IK40A-AT ) 60 0.70 260 1550
5IK40GN-E 5IK40GN-ET 40 1ph 110 60 0.55 200 260 1550 8.0
(5IK40A-E ) (5IK40A-ET) 1ph 120 0.60
5IK40GN-C 5IK40GN-CT 40 1ph 220 50 0.35 220 315 1250 2.5
(5IK40A-C ) (5IK40A-CT) 1ph 230 0.40
5IK40GN-H 5IK40GN-HT 40 1ph 220 60 0.35 200 260 1550
(5IK40A-H ) (5IK40A-HT) 1ph 230 0.40
5IK40GN-S 5IK40GN-ST 40 3ph 220 50 0.30 800 315 1250 -
(5IK40A-S ) (5IK40A-ST ) 60 0.25 660 250 1550

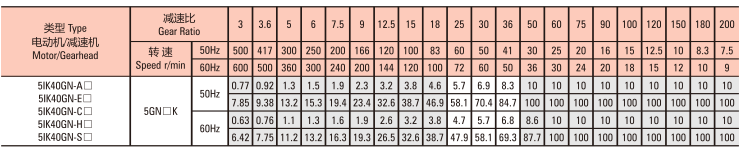

Allowance Torque Unit: Upside ( N.m ) / Belowside ( kgf.cm )
