60W Induction Gear Motor

60W Induction Gear Motor

60W 90mm

Specifications

Model • Type Output Voltage Frequency Current Starting Rated Rated Capacitor
Upper: Pinion Shaft power Torque Torque Speed
Below: Round Shaft
Lead Wire Type Terminal Box Type W V Hz A mN.m mN.m r/min μF

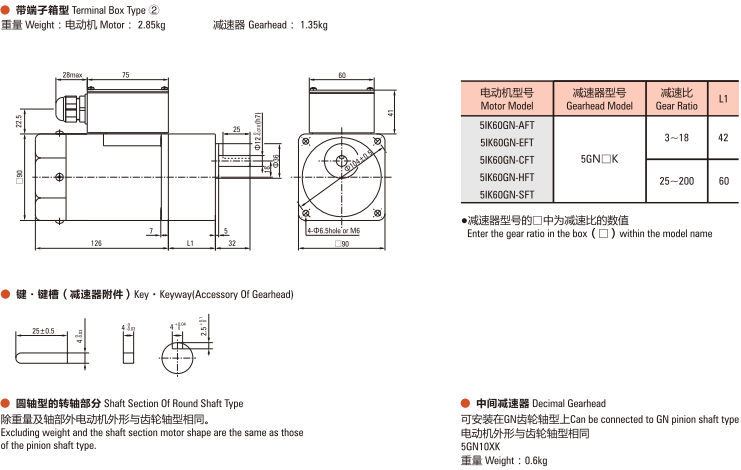

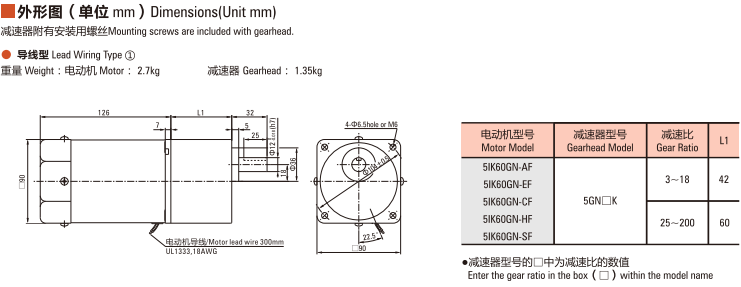

Dimensions Dimensions
5IK60GN-AF 5IK60GN-AFT 60 1ph 100 50 1.00 320 470 1250 20.0
(5IK60A-AF ) (5IK60A-AFT ) 60 1.10 380 1550
5IK60GN-EF 5IK60GN-EFT 60 1ph 110 60 0.80 300 380 1550 12.0
(5IK60A-EF) (5IK60A-EFT) 1ph 120 0.85
5IK60GN-CF 5IK60GN-CFT 60 1ph 220 50 0.50 340 470 1250 4.0
(5IK60A-CF ) (5IK60A-CFT) 1ph 230 0.55
5IK60GN-HF 5IK60GN-HFT 60 1ph 220 60 0.50 340 380 1550
(5IK60A-HF ) (5IK60A-HFT) 1ph 230 0.55
5IK60GN-SF 5IK60GN-SFT 60 3ph 220 50 0.45 1000 470 1250 -
(5IK60A-SF) (5IK60A-SFT ) 60 0.40 800 380 1550

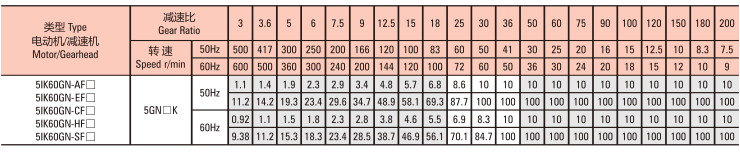

Allowance Torque Unit: Upside ( N.m ) / Belowside ( kgf.cm )
