90W Induction Gear Motor

90W Induction Gear Motor

90W 90mm

Specifications

Model • Type Output Voltage Frequency Current Starting Rated Rated Capacitor
Upper: Pinion Shaft power Torque Torque Speed

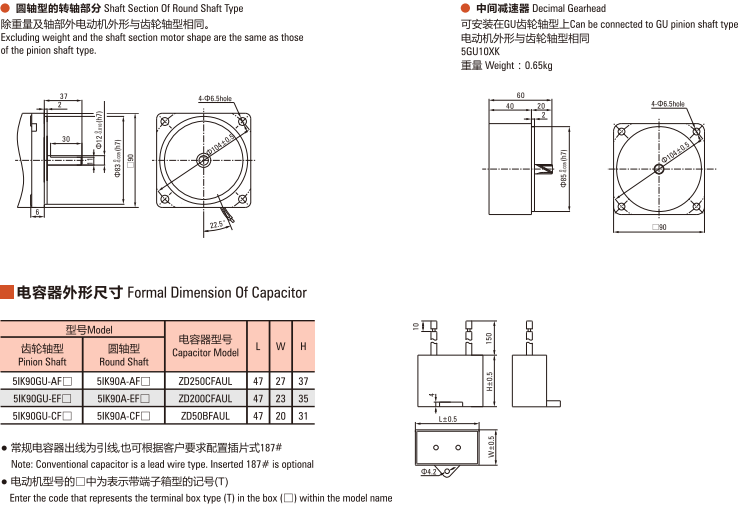

Below: Round Shaft

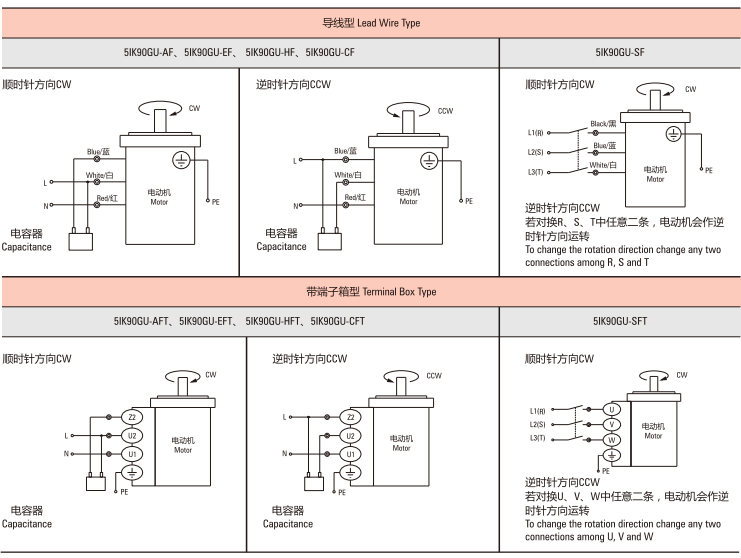

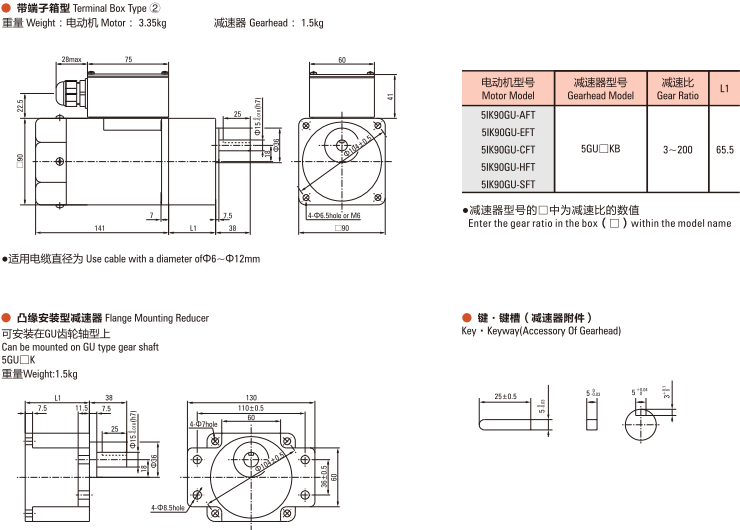

Lead Wire Type Terminal Box Type W V Hz A mN.m mN.m r/min μF

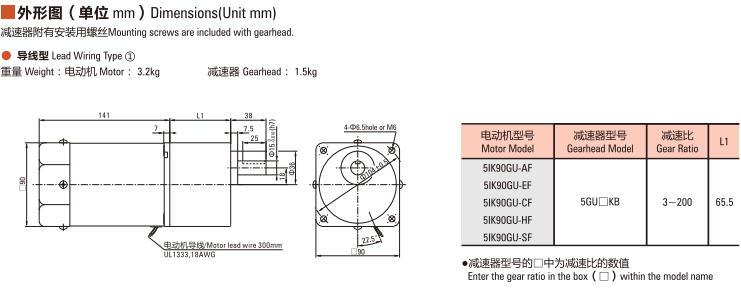

Dimensions Dimensions
5IK90GU-AF 5IK90GU-AFT 90 1ph 100 50 1.55 450 700 1250 25.0
(5IK90A-AF ) (5IK90A-AFT ) 60 1.85 570 1550
5IK90GU-EF 5IK90GU-EFT 90 1ph 110 60 1.40 500 570 1550 20.0
(5IK90A-EF) (5IK90A-EFT) 1ph 120 1.45
5IK90GU-CF 5IK90GU-CFT 90 1ph 220 50 0.72 450 700 1250 5.0
(5IK90A-CF ) (5IK90A-CFT) 1ph 230 0.70
5IK90GU-HF 5IK90GU-HFT 90 1ph 220 60 0.71 450 570 1550
(5IK90A-HF ) (5IK90A-HFT) 1ph 230 0.75
5IK90GU-SF 5IK90GU-SFT 90 3ph 220 50 0.60 1350 700 1250 -
(5IK90A-SF) (5IK90A-SFT ) 60 0.55 1100 570 1550

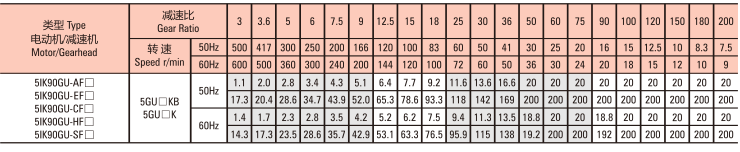

Allowance Torque Unit: Upside ( N.m ) / Belowside ( kgf.cm )
