120W(90mm) Induction Gear Motor

120W(90mm) Induction Gear Motor

90W 90mm

Specifications

Model • Type Output Voltage Frequency Current Starting Rated Rated Capacitor
Upper: Pinion Shaft power Torque Torque Speed
Below: Round Shaft
Lead Wire Type Terminal Box Type w V Hz A mN.m mN.m r/min μF

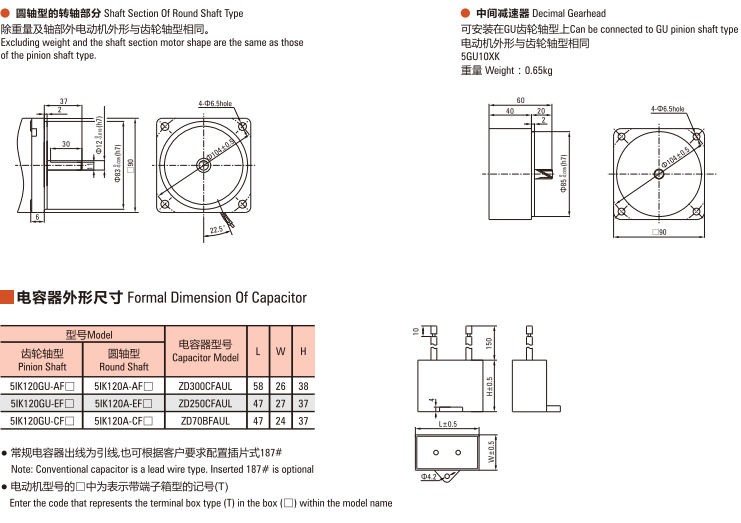

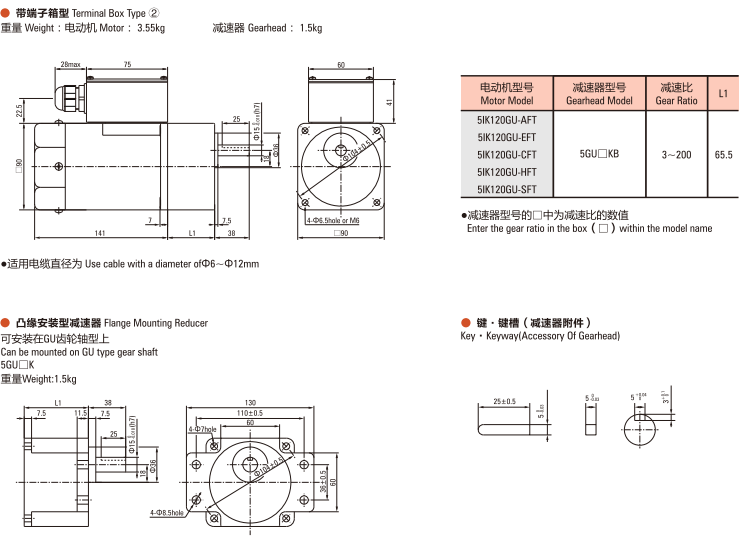

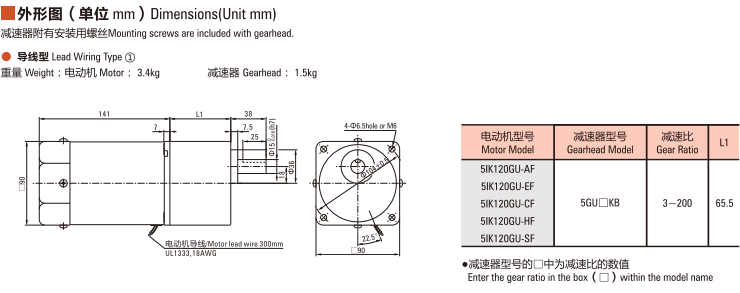

Dimensions  Dimensions
5IK120GU-AF 5IK120GU-AFT 120 1ph 100 50 2.10  600  930  1250  30.0
(5IK120A-AF ) (5IK120A-AFT ) 60 2.50  750  1550
5IK120GU-EF 5IK120GU-EFT 120 1ph 110 60 1.65  600  750  1550  25.0
(5IK120A-EF) (5IK120A-EFT) 1ph 120 1.80
5IK120GU-CF 5IK120GU-CFT 120 1ph 220 50 1.00  650  930  1250  7.0
(5IK120A-CF ) (5IK120A-CFT) 1ph 230 0.95
5IK120GU-HF 5IK120GU-HFT 120 1ph 220 60 1.00  600  750  1550
(5IK120A-HF ) (5IK120A-HFT) 1ph 230 0.95
5IK120GU-SF 5IK120GU-SFT 120 3ph 220 50 0.70  1850  930  1250  -
(5IK120A-SF) (5IK120A-SFT ) 60 0.60  1600  750  1550

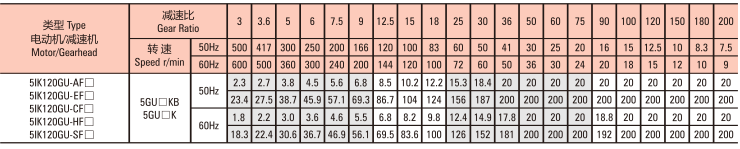

Allowance Torque Unit: Upside ( N.m ) / Belowside ( kgf.cm )
