120W(104mm) Induction Gear Motor

120W(104mm) Induction Gear Motor

120W 104mm

Specifications

Model • Type Output Voltage Frequency Current Starting Rated Rated Capacitor
Upper: Pinion Shaft power Torque Torque Speed
Below: Round Shaft
Lead Wire Type Terminal Box Type W V Hz A mN.m mN.m r/min μF

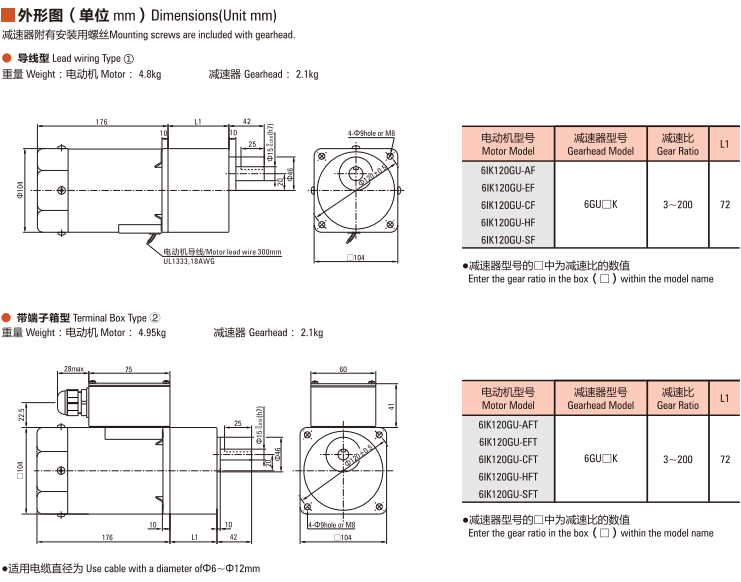

Dimensions  Dimensions
6IK120GU-AF 6IK120GU-AFT 120 1ph 100 50 2.10  600  930  1250  30.0
(6IK120A-AF ) (6IK120A-AFT ) 60 2.50  750  1550
6IK120GU-EF 6IK120GU-EFT 120 1ph 110 60 1.65  600  750  1550  25.0
(6IK120A-EF) (6IK120A-EFT) 1ph 120 1.80
6IK120GU-CF 6IK120GU-CFT 120 1ph 220 50 1.00  650  930  1250  7.0
(6IK120A-CF ) (6IK120A-CFT) 1ph 230 0.95
6IK120GU-HF 6IK120GU-HFT 120 1ph 220 60 1.00  600  750  1550
(6IK120A-HF ) (6IK120A-HFT) 1ph 230 0.95
6IK120GU-SF 6IK120GU-SFT 120 3ph 220 50 0.70  1850  930  1250  -
(6IK120A-SF) (6IK120A-SFT ) 60 0.60  1600  750  1550

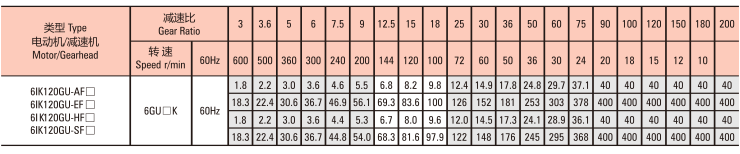

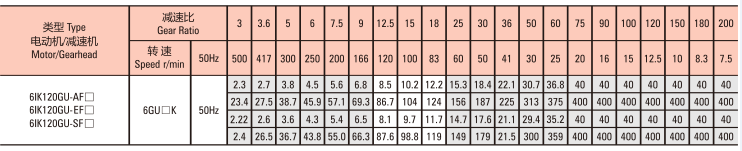

Allowance Torque Unit: Upside ( N.m ) / Belowside ( kgf.cm )
