140W Induction Gear Motor

140W Induction Gear Motor

140W 104mm

Specifications

Model • Type Output Voltage Frequency Current Starting Rated Rated Capacitor
Upper: Pinion Shaft power Torque Torque Speed
Below: Round Shaft
Lead Wire Type Terminal Box Type W V Hz A mN.m mN.m r/min μF

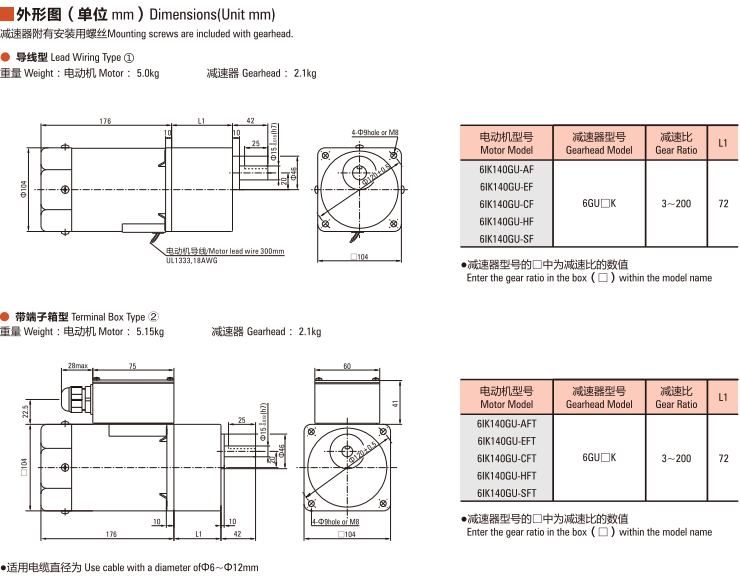

Dimensions Dimensions
6IK140GU-AF 6IK140GU-AFT 140 1ph 100 50 2.70 700 1080 1250 35.0
(6IK140A-AF ) (6IK140A-AFT ) 60 3.00 870 1550
6IK140GU-EF 6IK140GU-EFT 140 1ph 110 60 1.80 700 850 1600 25.0
(6IK140A-EF) (6IK140A-EFT) 1ph 120 1.95
6IK140GU-CF 6IK140GU-CFT 140 1ph 220 50 1.05 850 1040 1350 10.0
(6IK140A-CF ) (6IK140A-CFT) 1ph 230 1.15
6IK140GU-HF 6IK140GU-HFT 140 1ph 220 60 1.05 750 850 1600
(6IK140A-HF ) (6IK140A-HFT) 1ph 230 1.15
6IK140GU-SF 6IK140GU-SFT 140 3ph 220 50 0.85 2700 1080 1250 -
(6IK140A-SF) (6IK140A-SFT ) 60 0.75 2200 870 1550

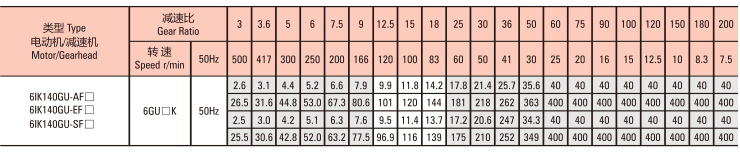

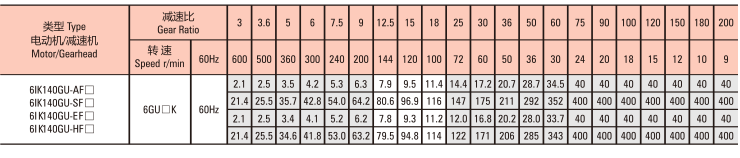

Allowance Torque Unit: Upside ( N.m ) / Belowside ( kgf.cm )
