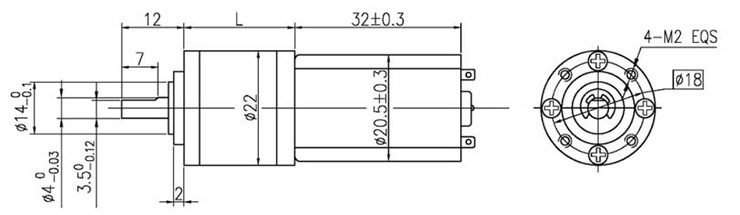

Dimensions
Motor Technical Data
| TYPE | Rated | No-load | No-load | Rated | Rated | Output | Rated | Stall | Stall |
| voltage | speed | current | speed | torque | power | current | torque | current | |
| VDC | r/min | mA | r/min | mN.m | W | mA | mN.m | A | |
| 20DY32-1280 | 12 | 8000 | 70 | 6700 | 2.2 | 1.5 | 200 | 13.9 | 1.07 |
| 20DY32-1295 | 12 | 9500 | 70 | 7800 | 2.3 | 1.9 | 240 | 17.5 | 1.51 |
| 20DY32-2480 | 24 | 8000 | 40 | 6700 | 2.3 | 1.6 | 110 | 15 | 0.58 |
Gear Motor Technical Data
20DY32-1280 DC Motor
Reduction ratio
4
4.75
16
19
22
64
76
90
107
256
304
364
429
509
Number of gear trains
1
1
2
2
2
3
3
3
3
4
4
4
4
4
Length(L) mm
14.4
14.4
17.8
17.8
17.8
21.5
21.5
21.5
21.5
25.2
25.2
25.2
25.2
25.2
No-load speed r/min
2000
1684
500
421
364
125
105
89
75
31
26
22
19
16
Rated speed r/min
1675
1411
419
353
305
105
88
74
63
26
22
18
16
13
Rated torque N.m
0.008
0.009
0.029
0.034
0.039
0.10
0.12
0.14
0.17
0.3
0.3
0.3
0.3
0.3
N.m
Max. permissible load in a short time
0.09
0.09
0.45
0.45
0.45
0.75
0.75
0.75
0.75
0.75
0.9
0.9
0.9
0.9
20DY32-1295 DC Motor
|
Reduction ratio |
4 |
4.75 |
16 |
19 |
22 |
64 |
76 |
90 |
107 |
256 |
304 |
364 |
429 |
509 |
|
Number of gear trains |
1 |
1 |
2 |
2 |
2 |
3 |
3 |
3 |
3 |
4 |
4 |
4 |
4 |
4 |
|
Length(L) mm |
14.4 |
14.4 |
17.8 |
17.8 |
17.8 |
21.5 |
21.5 |
21.5 |
21.5 |
25.2 |
25.2 |
25.2 |
25.2 |
25.2 |
|
No-load speed r/min |
2375 |
2000 |
594 |
500 |
432 |
148 |
125 |
106 |
89 |
37 |
31 |
26 |
22 |
19 |
|
Rated speed r/min |
1950 |
1642 |
488 |
411 |
355 |
122 |
103 |
87 |
78 |
30 |
26 |
21 |
18 |
15 |
|
Rated torque N.m |
0.008 |
0.010 |
0.030 |
0.035 |
0.041 |
0.11 |
0.13 |
0.15 |
0.18 |
0.3 |
0.3 |
0.3 |
0.3 |
0.3 |
|
N.m Max. permissible load in a short time |
0.09 |
0.09 |
0.45 |
0.45 |
0.45 |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
0.9 |
0.9 |
0.9 |
0.9 |
20DY32-2480 DC Motor
Reduction ratio
4
4.75
16
19
22
64
76
90
107
256
304
364
429
509
Number of gear trains
1
1
2
2
2
3
3
3
3
4
4
4
4
4
Length(L) mm
14.4
14.4
17.8
17.8
17.8
21.5
21.5
21.5
21.5
25.2
25.2
25.2
25.2
25.2
No-load speed r/min
2000
1684
500
421
364
125
105
89
75
31
26
22
19
16
Rated speed r/min
1675
1411
419
353
305
105
88
74
63
26
22
18
16
13
Rated torque N.m
0.008
0.010
0.030
0.035
0.041
0.11
0.13
0.15
0.18
0.3
0.3
0.3
0.3
0.3
N.m
Max. permissible load in a short time
0.09
0.09
0.45
0.45
0.45
0.75
0.75
0.75
0.75
0.75
0.9
0.9
0.9
0.9
