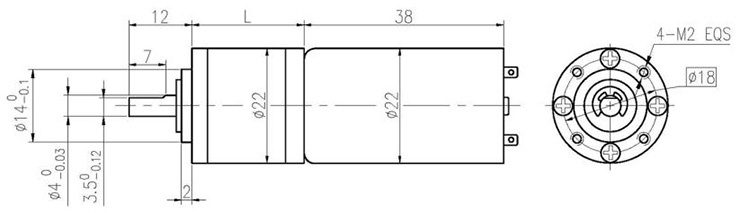

Dimensions
Motor Technical Data
| TYPE | Rated | No-load | No-load | Rated | Rated | Output | Rated | Stall | Stall |
| voltage | speed | current | speed | torque | power | current | torque | current | |
| VDC | r/min | mA | r/min | mN.m | W | mA | mN.m | A | |
| 22DY38B-1230 | 12 | 3000 | 70 | 2200 | 3 | 0.7 | 135 | 9.3 | 0.26 |
| 22DY38B-1260 | 12 | 6000 | 100 | 5000 | 3 | 1.56 | 250 | 17 | 0.87 |
Gear Motor Technical Data
22DY38B-1230 DC Motor
Reduction ratio
4
4.75
16
19
22
64
76
90
107
256
304
Number of gear trains
1
1
2
2
2
3
3
3
3
4
4
Length(L) mm
14.4
14.4
17.8
17.8
17.8
21.5
21.5
21.5
21.5
25.2
25.2
No-load speed r/min
750
632
188
158
136
47
39
33
28
12
10
Rated speed r/min
550
463
138
116
100
34
29
24
21
8.6
7.2
Rated torque N.m
0.011
0.013
0.039
0.046
0.053
0.14
0.17
0.20
0.23
0.3
0.3
N.m
Max. permissible load in a short time
0.09
0.09
0.45
0.45
0.45
0.75
0.75
0.75
0.75
0.9
0.9
22DY38B-1260 DC Motor
Reduction ratio
4
4.75
16
19
22
64
76
90
107
256
304
Number of gear trains
1
1
2
2
2
3
3
3
3
4
4
Length(L) mm
14.4
14.4
17.8
17.8
17.8
21.5
21.5
21.5
21.5
25.2
25.2
No-load speed r/min
1500
1263
375
316
273
94
79
67
56
23
20
Rated speed r/min
1250
1035
313
263
227
78
66
56
47
20
16
Rated torque N.m
0.011
0.013
0.039
0.046
0.053
0.14
0.17
0.20
0.23
0.3
0.3
N.m
Max. permissible load in a short time
0.09
0.09
0.45
0.45
0.45
0.75
0.75
0.75
0.75
0.9
0.9
