22DN10K-22DY38

22DN10K-22DY38

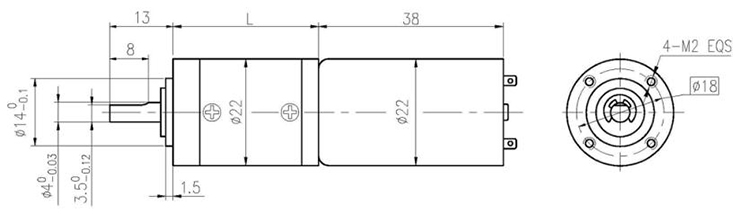

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage  speed current speed  torque  power  current torque current
VDC r/min mA r/min mN.m W mA mN.m A
22DY38B-1245 12 4500 85 3340 3 1 180 13.2 0.48
22DY38B-1260 12 6000 100 5000 3 1.56 250 17 0.87
22DY38B-12100 12 10000 150 8700 3 2.7 500 28 2.3

Gear Motor Technical Data


22DY38B-1245 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

24.4

24.4

31.0

31.0

31.0

37.4

37.4

37.4

37.4

43.8

43.8

43.8

43.8

43.8

No-load speed  r/min

1213

869

321

237

167

88

63

45

32

24

17

12

8.7

6.2

Rated speed  r/min

900

645

239

176

124

65

47

33

24

18

13

9.1

6.5

4.6

Rated torque  N.m

0.010

0.014

0.034

0.046

0.066

0.11

0.16

0.22

0.30

0.37

0.51

0.72

1

1

             N.m

Max. permissible load in a short time

0.3

0.3

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3

3

3


22DY38B-1260 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

24.4

24.4

31.0

31.0

31.0

37.4

37.4

37.4

37.4

43.8

43.8

43.8

43.8

43.8

No-load speed  r/min

1617

1158

429

316

222

118

85

60

43

32

23

16

12

8.3

Rated speed  r/min

1348

965

357

263

185

98

70

50

36

26

19

14

9.7

6.9

Rated torque  N.m

0.010

0.014

0.034

0.046

0.066

0.11

0.16

0.22

0.30

0.37

0.51

0.72

1

1

            N.m

Max. permissible load in a short time

0.3

0.3

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3

3

3


22DY38B-12100 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

24.4

24.4

31.0

31.0

31.0

37.4

37.4

37.4

37.4

43.8

43.8

43.8

43.8

43.8

No-load speed  r/min

2695

1931

714

526

370

196

141

100

72

53

38

27

19

14

Rated speed  r/min

2480

1776

621

458

322

171

123

87

63

46

33

24

17

12

Rated torque  N.m

0.010

0.014

0.034

0.046

0.066

0.11

0.16

0.22

0.30

0.37

0.51

0.72

1

1

             N.m

Max. permissible load in a short time

0.3

0.3

1.2

1.2

1.2

2.5

2.5

2.5

2.5

3

3

3

3

3
