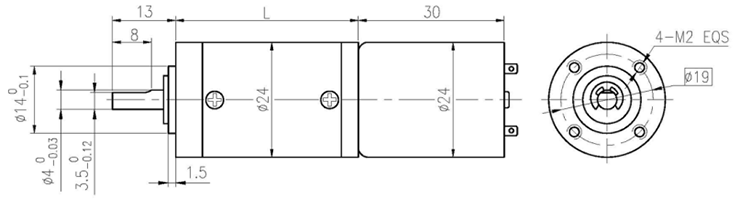

Dimensions
Motor Technical Data
TYPE
Rated
No-load
No-load
Rated
Rated
Output
Rated
Stall
Stall
voltage
speed
current
speed
torque
power
current
torque
current
VDC
r/min
mA
r/min
mN.m
W
mA
mN.m
A
24DY30-1245
12
4500
60
3600
2.5
0.9
170
12.5
0.5
24DY30-1260
12
6000
70
4800
3
1.5
240
15
1
24DY30-12100
12
10000
100
7700
4
3.1
420
16
1.6
Gear Motor Technical Data
24DY30-1245 DC Motor
Reduction ratio
3.7
5.2
14
19
27
51
71
100
139
189
264
369
516
Number of gear trains
1
1
2
2
2
3
3
3
3
4
4
4
4
Length(L) mm
25.0
25.0
31.6
31.6
38.0
38.0
38.0
38.0
38.0
44.4
44.4
44.4
44.4
No-load speed r/min
1213
869
321
237
167
88
63
45
32
24
17
12
8.7
Rated speed r/min
970
695
257
189
133
71
51
36
26
19
14
10
7.0
Rated torque N.m
0.008
0.012
0.028
0.038
0.055
0.093
0.13
0.18
0.25
0.31
0.43
0.5
0.5
N.m
Max. permissible load in a short time
0.15
0.15
0.6
0.6
0.6
1.2
1.2
1.2
1.2
1.5
1.5
1.5
1.5
24DY30-1260 DC Motor
Reduction ratio
3.7
5.2
14
19
27
51
71
100
139
189
264
369
516
Number of gear trains
1
1
2
2
2
3
3
3
3
4
4
4
4
Length(L) mm
25.0
25.0
31.6
31.6
38.0
38.0
38.0
38.0
38.0
44.4
44.4
44.4
44.4
No-load speed r/min
1617
1158
429
316
222
118
85
60
43
32
23
16
12
Rated speed r/min
1294
927
342
253
178
94
68
48
35
25
18
13
9.3
Rated torque N.m
0.010
0.014
0.037
0.051
0.073
0.13
0.16
0.25
0.35
0.46
0.5
0.5
0.5
N.m
Max. permissible load in a short time
0.15
0.15
0.6
0.6
0.6
1.2
1.2
1.2
1.2
1.5
1.5
1.5
1.5
24DY30-12100 DC Motor
Reduction ratio
14
19
27
51
71
100
139
189
264
369
516
Number of gear trains
2
2
2
3
3
3
3
4
4
4
4
Length(L) mm
31.6
31.6
31.6
38.0
38.0
38.0
38.0
44.4
44.4
44.4
44.4
No-load speed r/min
714
526
370
196
141
100
72
53
38
27
19
Rated speed r/min
550
405
285
151
108
77
55
41
29
21
15
Rated torque N.m
0.045
0.062
0.087
0.15
0.21
0.29
0.41
0.49
0.69
0.96
1
N.m
Max. permissible load in a short time
1.2
1.2
1.2
2.5
2.5
2.5
2.5
3
3
3
3
