28DN30K-28DY38

28DN30K-28DY38

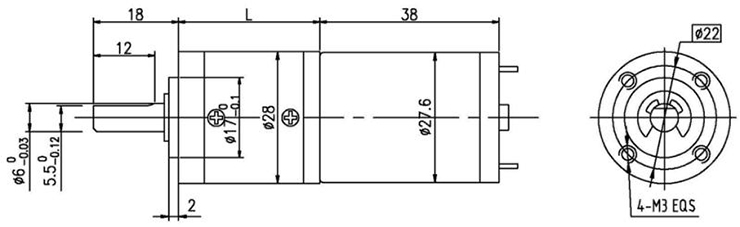

Dimensions


Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage  speed current speed  torque  power  current torque current
VDC r/min mA r/min mN.m W mA mN.m A
28DY38-1240 12 4000 80 2600 7 1.86 350 20 0.75
28DY38-1250 12 5000 100 3450 7 2.48 370 21.5 0.9
28DY38-2450 24 5000 70 3800 7 2.78 230 25 0.7

Gear Motor Technical Data


28DY38-1240 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

29.0

29.0

36.1

36.1

36.1

43.0

43.0

43.0

43.0

49.9

49.9

49.9

49.9

49.9

No-load speed  r/min

1078

772

286

211

148

78

56

40

29

21

15

11

7.8

5.6

Rated speed  r/min

701

502

186

137

96

51

37

26

19

14

9.8

7.0

5.0

3.6

Rated torque  N.m

0.023

0.033

0.079

0.11

0.15

0.26

0.36

0.51

0.71

0.86

1.2

1.7

2.4

3.6

           N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9


28DY38-1250 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

516

720

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

29.0

29.0

36.1

36.1

36.1

43.0

43.0

43.0

43.0

49.9

49.9

49.9

49.9

49.9

No-load speed  r/min

1348

965

357

263

185

98

70

50

36

26

19

14

9.7

6.9

Rated speed  r/min

930

666

246

182

128

68

49

35

25

18

13

9.3

6.7

4.8

Rated torque  N.m

0.023

0.033

0.079

0.11

0.15

0.26

0.36

0.51

0.71

0.86

1.2

1.7

2.3

3

             N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9


28DY38-2450 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

189

264

369

264

369

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

29.0

29.0

36.1

36.1

36.1

43.0

43.0

43.0

43.0

49.9

49.9

49.9

49.9

49.9

No-load speed  r/min

1348

965

357

263

185

98

70

50

36

26

19

14

9.7

6.9

Rated speed  r/min

1024

734

271

200

141

75

54

38

27

20

14

10

7.4

5.3

Rated torque  N.m

0.023

0.033

0.079

0.11

0.15

0.26

0.36

0.51

0.71

0.86

1.2

1.7

2.3

3

             N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9
