30DN30K-28DY47P

30DN30K-28DY47P

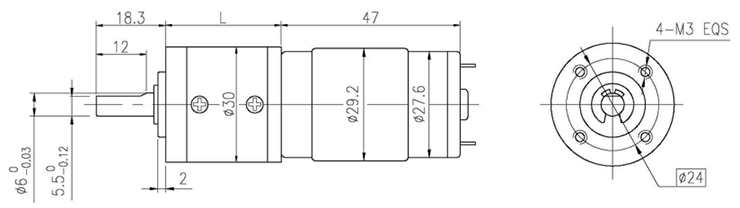

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage  speed current speed  torque  power  current torque current
VDC r/min mA r/min mN.m W mA mN.m A
28DY47P-1273 12 7300 150 5950 10.8 6.7 900 32 2.7
28DY47P-2473 24 7300 80 6160 12.7 8.2 500 38 1.5

Gear Motor Technical Data


28DY47P-1273 DC Motor

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

264

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

29.0

29.0

36.1

36.1

36.1

36.1

43.0

43.0

43.0

43.0

49.9

49.9

49.9

49.9

49.9

No-load speed  r/min

1968

1409

521

384

270

209

143

103

73

53

39

28

21

15

12

Rated speed  r/min

1604

1149

425

313

220

170

117

84

60

43

31

23

17

12

10

Rated torque  N.m

0.036

0.050

0.12

0.17

0.24

0.31

0.40

0.56

0.79

1.1

1.3

1.9

2.5

3

3

            N.m

Max. permissible load in a short time

0.6

0.6

2.5

2.5

2.5

2.5

5

5

5

5

3

6

6

6

6


28DY47P-2473 DC Motor

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

264

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

29.0

29.0

36.1

36.1

36.1

36.1

43.0

43.0

43.0

43.0

49.9

49.9

49.9

49.9

49.9

No-load speed  r/min

1968

1409

521

384

270

209

143

103

73

53

39

28

21

15

12

Rated speed  r/min

1660

1189

440

324

228

176

121

87

62

44

33

23

17

12

10

Rated torque  N.m

0.042

0.059

0.14

0.20

0.28

0.36

0.47

0.66

0.93

1.3

1.6

2.2

2.9

3

3

             N.m

Max. permissible load in a short time

0.6

0.6

2.5

2.5

2.5

2.5

5

5

5

5

3

6

6

6

6
