32DXE30K-28DY47P(1)

32DXE30K-28DY47P(1)

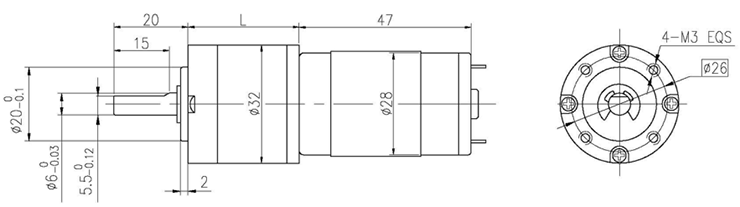

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage  speed current speed  torque  power  current torque current
VDC r/min mA r/min mN.m W mA mN.m A
28DY47P-1265 12 6500 150 5290 7.6 4.2 530 23 1.6
28DY47P-2465 24 6500 85 5250 7.3 4 250 23 0.8

Gear Motor Technical Data


28DY47P-1265 DC Motor

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed  r/min

1756

1255

464

342

241

186

127

92

65

47

34

26

18

13

11

Rated speed  r/min

1426

1021

378

278

196

151

104

75

53

38

28

21

15

11

8.9

Rated torque  N.m

0.025

0.035

0.086

0.12

0.17

0.22

0.28

0.39

0.55

0.77

0.93

1.3

1.7

2.4

2.9

            N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9


28DY47P-2465 DC Motor

Reduction ratio

3.7

5.2

14

19

27

35

51

71

100

139

189

254

354

495

596

Number of gear trains

1

1

2

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

25.7

25.7

32.8

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

No-load speed  r/min

1752

1255

464

342

241

186

127

92

65

47

34

26

18

13

11

Rated speed  r/min

1415

1014

375

276

194

150

103

74

53

38

28

21

15

11

8.8

Rated torque  N.m

0.024

0.034

0.083

0.11

0.16

0.21

0.27

0.38

0.53

0.74

0.90

1.2

1.7

2.3

2.8

             N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9
