32DXE30K-31DY46

32DXE30K-31DY46

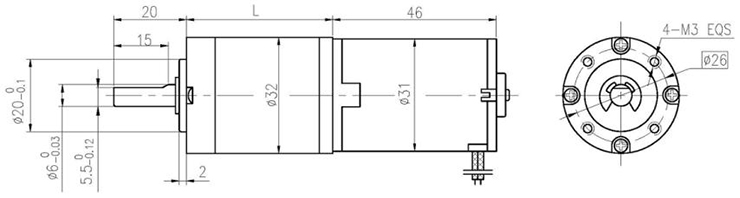

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage speed current speed torque power current torque current
VDC r/min mA r/min mN.m W mA mN.m A
31DY46-2450 24 5000 120 3500 15 5.5 660 50 1.8
31DY46-2460 24 6000 150 3600 22 8.3 800 57 1.9

Gear Motor Technical Data


31DY46-2450 DC Motor

    Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

181

219

254

306

354

    Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

25.7

25.7

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

46.6

   No-load speed  r/min

1348

965

357

263

185

98

70

50

36

26

20

16

14

12

Rated speed r/min

943

676

250

184

130

69

49

35

25

19

14

11

9.9

8.2

Rated torque N.m

0.05

0.07

0.17

0.23

0.33

0.56

0.78

1.1

1.5

1.8

2.5

3

3

3

N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

7.5

9

9

9

9


31DY46-2460 DC Motor

    Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

181

219

254

306

    Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

Length(L)      mm

25.7

25.7

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

   No-load speed  r/min

1617

1158

429

316

222

118

85

60

43

33

27

24

20

Rated speed r/min

970

695

257

189

133

71

51

36

26

20

16

14

12

Rated torque N.m

0.07

0.10

0.25

0.34

0.48

0.82

1.1

1.6

2.2

2.6

3

3

3

N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

7.5

9

9

9
