32DXE30K-31DY51G

32DXE30K-31DY51G

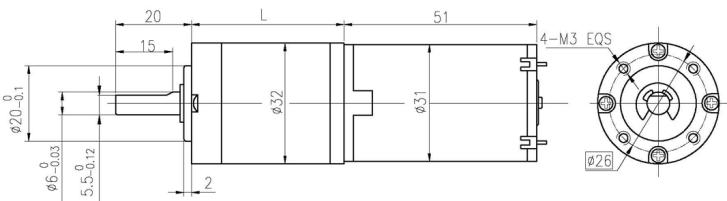

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage  speed current speed  torque  power  current torque current
VDC r/min mA r/min mN.m W mA mN.m A
31DY51G-2440 24 4000 70 3130 22 7.1 430 101.1 1.6
31DY51G-2450 24 5000 75 3830 25 9.8 570 106.8 2.3

Gear Motor Technical Data


31DY51G-2440 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

181

219

306

354

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

Length(L)      mm

25.7

25.7

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

46.6

No-load speed  r/min

1081

769

286

211

148

78

56

40

29

22

18

13

11

Rated speed  r/min

846

602

224

165

116

61

44

31

23

17

14

10

9

Rated torque  N.m

0.073

0.10

0.25

0.34

0.48

0.82

1.14

1.6

2.2

2.6

3

3

3

            N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9


31DY51G-2450 DC Motor

    Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

181

219

254

    Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L)      mm

25.7

25.7

32.8

32.8

32.8

39.7

39.7

39.7

39.7

46.6

46.6

46.6

   No-load speed  r/min

1351

962

357

263

185

98

70

50

36

28

23

20

 Rated speed  r/min

1035

737

274

202

142

75

54

38

28

21

17

15

 Rated torque  N.m

0.083

0.12

0.28

0.39

0.55

0.93

1.3

1.8

2.5

3

3

3

              N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9
