36DXE30K-36DY57

36DXE30K-36DY57

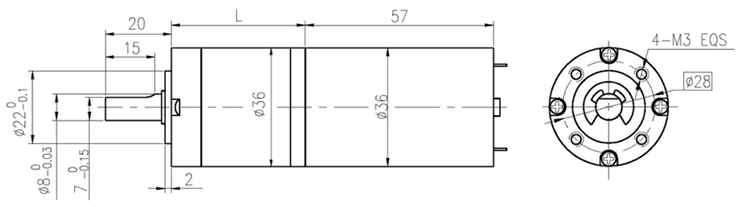

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage speed current speed torque power current torque current
VDC r/min mA r/min mN.m W mA mN.m A
36DY57-2430 24 3000 100 2500 15 4.5 0.52 92 2.2
36DY57-2442 24 4200 120 3600 19 7 0.52 97 2.8

Gear Motor Technical Data


36DY57-2430 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

181

219

254

306

354

427

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

4

Length(L)      mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

47.4

No-load speed  r/min

809

579

214

158

111

59

42

30

22

16

14

12

9.8

8.5

7.0

Rated speed r/min

674

483

179

132

93

49

35

25

18

13

11

9.8

8.2

7.1

5.9

Rated torque N.m

0.050

0.070

0.17

0.23

0.33

0.56

0.78

1.1

1.5

1.8

2.1

2.4

3

3

3

N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9

9


36DY57-2442 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

139

181

219

254

306

354

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

No-load speed  r/min

1132

811

300

221

156

82

59

42

30

22

19

17

14

12

Rated speed r/min

970

695

257

189

133

71

51

36

26

19

16

14

12

10

Rated torque N.m

0.063

0.089

0.22

0.29

0.42

0.71

0.98

1.4

1.9

2.3

2.7

3

3

3

N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

9

9

9

9

9
