36DXE30K-36DY57P

36DXE30K-36DY57P

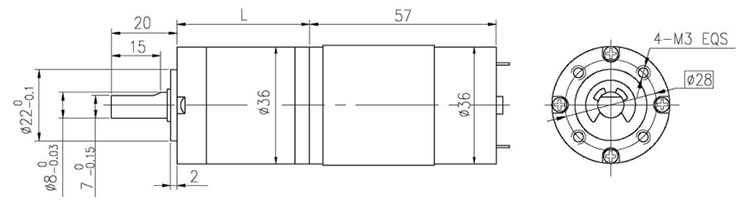

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage speed current speed torque power current torque current
VDC r/min mA r/min mN.m W mA mN.m A
36DY57P-1260 12 6000 260 5000 25 13.1 1.6 75 4.8
36DY57P-2460 24 6000 130 5000 26 13.5 0.8 78 2.4

Gear Motor Technical Data


36DY57P-1260 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

115

139

181

219

254

306

354

Number of gear trains

1

1

2

2

2

3

3

3

3

3

4

4

4

4

4

Length(L)      mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

No-load speed  r/min

1617

1158

429

316

222

118

85

60

52

43

33

27

24

20

17

Rated speed r/min

1346

965

357

263

185

98

70

50

43

36

28

23

20

16

14

Rated torque N.m

0.081

0.12

0.28

0.38

0.49

0.93

1.3

1.8

2.1

2.5

2.9

3

3

3

3

N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

7.5

9

9

9

9

9



36DY57P-2460DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

115

139

181

219

254

306

354

Number of gear trains

1

1

2

2

2

3

3

3

3

3

4

4

4

4

4

Length(L)      mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

40.5

47.4

47.4

47.4

47.4

47.4

No-load speed  r/min

1617

1158

429

316

222

118

85

60

52

43

33

27

24

20

17

Rated speed r/min

1346

965

357

263

185

98

70

50

43

36

28

23

20

16

14

Rated torque N.m

0.087

0.12

0.29

0.40

0.51

1.0

1.3

1.9

2.2

2.6

3

3

3

3

3

N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

7.5

7.5

7.5

9

9

9

9

9
