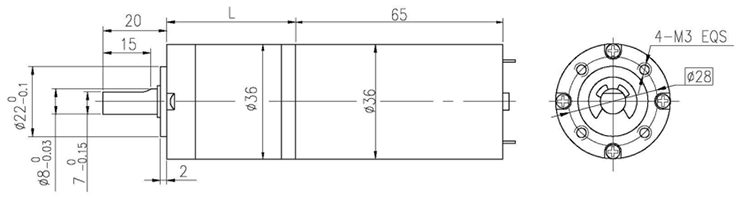

Dimensions
Motor Technical Data
TYPE
Rated
No-load
No-load
Rated
Rated
Output
Rated
Stall
Stall
voltage
speed
current
speed
torque
power
current
torque
current
VDC
r/min
mA
r/min
mN.m
W
mA
mN.m
A
36DY65-1272
12
7200
800
5750
36
22
4.2
115
12
36DY65-2472
24
7200
400
5750
38
23
2.1
115
6
Gear Motor Technical Data
36DY65-1272 DC Motor
Reduction ratio
3.7
5.2
14
19
27
51
71
100
115
139
181
219
254
Number of gear trains
1
1
2
2
2
3
3
3
3
3
4
4
4
Length(L) mm
26.5
26.5
33.6
33.6
33.6
40.5
40.5
40.5
40.5
40.5
47.4
47.4
47.4
No-load speed r/min
1941
1390
514
379
267
141
101
72
63
52
40
33
28
Rated speed r/min
1550
1110
411
303
213
113
81
58
50
41
32
26
23
Rated torque N.m
0.12
0.17
0.41
0.55
0.71
1.3
1.9
2.6
3
3
3
3
3
N.m
Max. permissible load in a short time
1.0
1.0
3.5
3.5
3.5
7.5
7.5
7.5
9
9
9
9
9
Reduction ratio
3.7
5.2
14
19
27
51
71
100
115
139
181
219
254
Number of gear trains
1
1
2
2
2
3
3
3
3
3
4
4
4
Length(L) mm
26.5
26.5
33.6
33.6
33.6
40.5
40.5
40.5
40.5
40.5
47.4
47.4
47.4
No-load speed r/min
1941
1390
514
379
267
141
101
72
63
52
40
33
28
Rated speed r/min
1550
1110
411
303
213
113
81
58
50
41
32
26
23
Rated torque N.m
0.13
0.18
0.43
0.58
0.75
1.4
2.0
2.8
3
3
3
3
3
N.m
Max. permissible load in a short time
1.0
1.0
3.5
3.5
3.5
7.5
7.5
7.5
9
9
9
9
9
