36DXE30K-36DY65P

36DXE30K-36DY65P

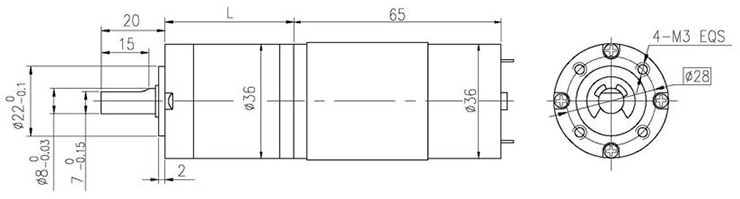

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage  speed current speed  torque  power  current torque current
VDC r/min mA r/min mN.m W mA mN.m A
36DY65P-1262 12 6200 600 5000 44 23 3 132 9
36DY65P-2462 24 6200 300 5000 46 24 1.5 138 4.5

Gear Motor Technical Data


36DY65P-1262 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

115

139

181

219

254

Number of gear trains

1

1

2

2

2

3

3

3

3

3

4

4

4

Length(L)      mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

40.5

47.4

47.4

47.4

No-load speed  r/min

1671

1197

443

326

230

122

87

62

54

45

34

28

24

Rated speed  r/min

1348

965

357

263

185

98

70

50

43

36

28

23

20

Rated torque  N.m

0.15

0.21

0.50

0.68

0.87

1.6

2.3

3

3

3

3

3

3

            N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

9

9

9

9

9

9


36DY65P-2462 DC Motor

Reduction ratio

3.7

5.2

14

19

27

51

71

100

115

139

181

219

254

Number of gear trains

1

1

2

2

2

3

3

3

3

3

4

4

4

Length(L)      mm

26.5

26.5

33.6

33.6

33.6

40.5

40.5

40.5

40.5

40.5

47.4

47.4

47.4

No-load speed  r/min

1671

1197

443

326

230

122

87

62

54

45

34

28

24

Rated speed  r/min

1348

965

357

263

185

98

70

50

43

36

28

23

20

Rated torque  N.m

0.15

0.21

0.52

0.71

0.91

1.7

2.4

3

3

3

3

3

3

             N.m

Max. permissible load in a short time

1.0

1.0

3.5

3.5

3.5

7.5

7.5

9

9

9

9

9

9
