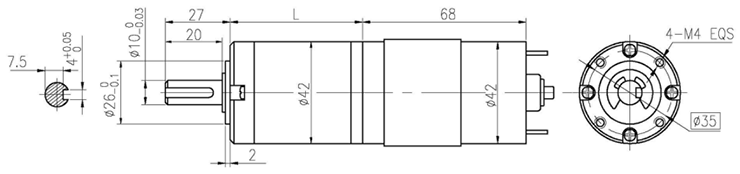

Dimensions
Motor Technical Data
TYPE
Rated
No-load
No-load
Rated
Rated
Output
Rated
Stall
Stall
voltage
speed
current
speed
torque
power
current
torque
current
VDC
r/min
mA
r/min
mN.m
W
mA
mN.m
A
42DY68P-1270
12
7000
1.2
5200
88
47.9
6.7
310
20.5
42DY68P-2470
24
7000
0.6
5200
120
65.3
4.2
320
10.8
Gear Motor Technical Data
42DY68P-1270 DC Motor
Reduction ratio
3.71
5.18
14
19
27
51
71
100
115
139
181
218
253
305
Number of gear trains
1
1
2
2
2
3
3
3
3
3
4
4
4
4
Length(L) mm
31.5
31.5
42.1
42.1
42.1
52.5
52.5
52.5
52.5
52.5
62.9
62.9
62.9
62.9
No-load speed r/min
1887
1351
500
368
259
137
99
70
61
50
39
32
28
23
Rated speed r/min
1402
1004
371
274
193
102
73
52
45
37
29
24
21
17
Rated torque N.m
0.29
0.41
1.0
1.6
1.9
3.3
4.6
6.4
7.4
8.9
10
10
10
10
N.m
Max. permissible load in a short time
3
3
12
12
12
25
25
25
25
30
30
30
30
30
42DY68P-2470 DC Motor
Reduction ratio
3.7
5.2
14
19
27
51
71
100
115
139
181
218
253
305
Number of gear trains
1
1
2
2
2
3
3
3
3
3
4
4
4
4
Length(L) mm
31.5
31.5
42.1
42.1
42.1
52.5
52.5
52.5
52.5
52.5
62.9
62.9
62.9
62.9
No-load speed r/min
1887
1351
500
368
259
137
99
70
61
50
39
32
28
23
Rated speed r/min
1402
1004
371
274
193
102
73
52
45
37
29
24
21
17
Rated torque N.m
0.40
0.56
1.4
1.9
2.6
4.5
6.2
8.8
10
10
10
10
10
10
N.m
Max. permissible load in a short time
3
3
12
12
12
25
25
25
25
30
30
30
30
30
