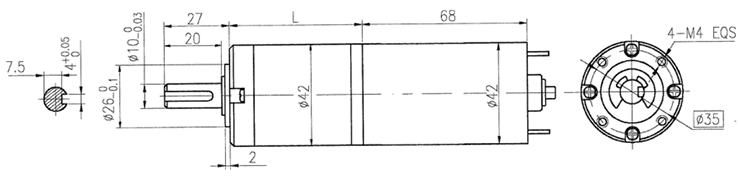

Dimensions
Motor Technical Data
TYPE
Rated
No-load
No-load
Rated
Rated
Output
Rated
Stall
Stall
voltage
speed
current
speed
torque
power
current
torque
current
VDC
r/min
mA
r/min
mN.m
W
mA
mN.m
A
42DY68-2430
24
3000
0.35
2250
56
13
1
175
2.6
42DY68-2440
24
4000
0.38
3000
75
24
1.6
215
4.2
42DY68-2450
24
5000
0.45
3750
80
31
2.2
230
6
Gear Motor Technical Data
42DY68P-2430 DC Motor
Reduction ratio
3.71
5.18
14
19
27
51
71
100
115
139
181
219
254
306
354
Number of gear trains
1
1
2
2
2
3
3
3
3
3
4
4
4
4
4
Length(L) mm
31.5
31.5
42.1
42.1
42.1
52.5
52.5
52.5
52.5
52.5
62.9
62.9
62.9
62.9
62.9
No-load speed r/min
809
579
214
158
111
59
42
30
26
22
17
14
11
9.8
8.5
Rated speed r/min
606
434
161
118
83
44
32
23
20
16
12
10
8.9
7.4
6.4
Rated torque N.m
0.19
0.26
0.64
0.86
1.1
2.1
2.9
4.1
4.7
5.7
6.6
8.0
9.2
10
10
N.m
Max. permissible load in a short time
3
3
12
12
12
25
25
25
25
25
30
30
30
30
30
42DY68-2440 DC Motor
Reduction ratio
3.7
5.2
14
19
27
51
71
100
115
139
181
219
254
Number of gear trains
1
1
2
2
2
3
3
3
3
3
4
4
4
Length(L) mm
31.5
31.5
42.1
42.1
42.1
52.5
52.5
52.5
52.5
52.5
62.9
62.9
62.9
No-load speed r/min
1078
772
286
211
148
78
56
40
35
29
22
18
16
Rated speed r/min
809
579
214
158
111
59
42
30
26
22
17
14
12
Rated torque N.m
0.25
0.35
0.85
1.2
1.5
2.8
3.9
5.5
6.3
7.6
8.8
10
10
N.m
Max. permissible load in a short time
3
3
12
12
12
25
25
25
25
25
30
30
30
42DY68-2450 DC Motor
Reduction ratio
3.7
5.2
14
19
27
51
71
100
115
139
181
219
254
Number of gear trains
1
1
2
2
2
3
3
3
3
3
3
4
4
Length(L) mm
31.5
31.5
42.1
42.1
42.1
52.5
52.5
52.5
52.5
52.5
52.5
62.9
62.9
No-load speed r/min
1348
965
357
263
185
98
70
50
43
36
28
23
20
Rated speed r/min
1011
724
268
197
139
74
53
38
33
27
21
17
15
Rated torque N.m
0.27
0.37
0.91
1.2
1.8
3.0
4.2
5.8
7.1
8.6
10
10
10
N.m
Max. permissible load in a short time
3
3
12
12
12
25
25
25
25
25
30
30
30
