42DXE100K-42DY75

42DXE100K-42DY75

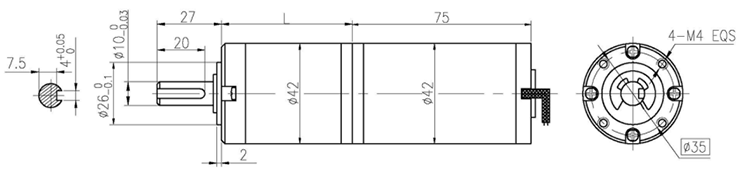

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage  speed current speed  torque  power  current torque current
VDC r/min mA r/min mN.m W mA mN.m A
42DY75-2430 24 3000 0.15 2500 44 11.5 0.75 259 3.55
42DY75-2440 24 4000 0.2 3500 55 20 1.2 360 6.3

Gear Motor Technical Data


42DY75-2430DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

181

219

254

306

354

427

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

4

Length(L)      mm

31.5

31.5

42.1

42.1

42.1

52.5

52.5

52.5

52.5

62.9

62.9

62.9

62.9

62.9

62.9

No-load speed  r/min

809

579

214

158

111

59

42

30

22

17

14

12

9.8

8.5

7.0

Rated speed  r/min

674

483

179

132

93

49

35

25

18

14

11

9.9

8.2

7.1

5.9

Rated torque  N.m

0.15

0.21

0.50

0.68

0.96

1.6

2.3

3.2

4.5

5.2

6.3

7.3

8.8

10

10

            N.m

Max. permissible load in a short time

3

3

12

12

12

25

25

25

25

30

30

30

30

30

30


42DY75-2440DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

181

219

254

306

354

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

4

4

Length(L)      mm

31.5

31.5

42.1

42.1

42.1

52.5

52.5

52.5

52.5

62.9

62.9

62.9

62.9

62.9

No-load speed  r/min

1078

772

286

211

148

78

56

40

29

22

18

16

13

11

Rated speed  r/min

943

676

250

184

130

69

49

35

25

19

16

14

11

9.9

Rated torque  N.m

0.18

0.26

0.62

0.85

1.2

2.1

2.9

4.0

5.6

6.5

7.8

9.1

10

10

             N.m

Max. permissible load in a short time

3

3

12

12

12

25

25

25

25

30

30

30

30

30
