42DXE100K-42DY85

42DXE100K-42DY85

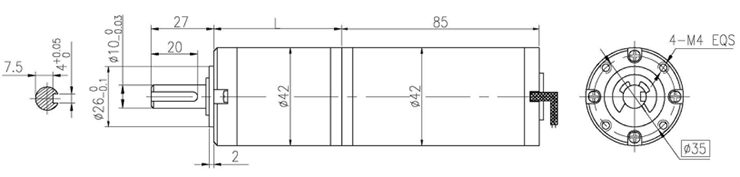

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage  speed current speed  torque  power  current torque current
VDC r/min mA r/min mN.m W mA mN.m A
42DY85-2440 24 4000 0.45 3000 93 29 2 310 6.2

Gear Motor Technical Data


42DY75-2440DC Motor

Reduction ratio

3.71

5.18

14

19

27

51

71

100

139

181

219

254

Number of gear trains

1

1

2

2

2

3

3

3

3

4

4

4

Length(L)      mm

31.5

31.5

42.1

42.1

42.1

52.5

52.5

52.5

52.5

62.9

62.9

62.9

No-load speed  r/min

1078

772

286

211

148

78

56

40

29

22

18

16

Rated speed  r/min

829

579

214

158

111

59

42

30

22

17

14

12

Rated torque  N.m

0.31

0.43

1.1

1.4

2.0

3.5

4.8

6.8

9.4

10

10

10

             N.m

Max. permissible load in a short time

3

3

12

12

12

25

25

25

25

30

30

30
