6W Induction Gear Motor

6W Induction Gear Motor

6W 60mm

Specifications

Model • Type  Lead Wire Type Output Voltage Frequency Current Starting Rated Rated Capacitor
Power Torque Torque Speed
Pinion  Shaft Round  Shaft W V Hz A mN.m mN.m r/min μF
2IK6GN-A 2IK6A-A 6 1ph 100 50 0.24 55 48 1200 3.5
60 0.25 50 40 1450
2IK6GN-E 2IK6A-E 6 1ph 110 60 0.16 40 40 1450 2
1ph 120 0.18
2IK6GN-C 2IK6A-C 6 1ph 220 50 0.13 50 48 1200 0.8
1ph 230 0.14 40 1450
2IK6GN-H 2IK6A-H 1ph 220 60 0.13 55 40 1450
1ph 230 0.14
2IK6GN-S 2IK6A-S 6 3ph 220 50 0.076 85 48 1200 -
60 0.065 70 40 1450

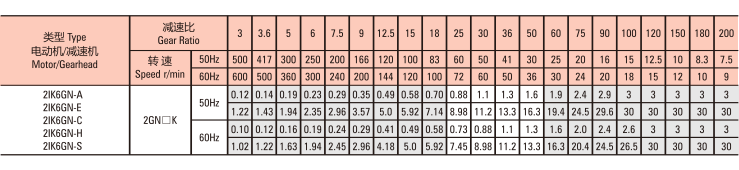

Allowance Torque Unit: Upside ( N.m ) / Belowside ( kgf.cm )
