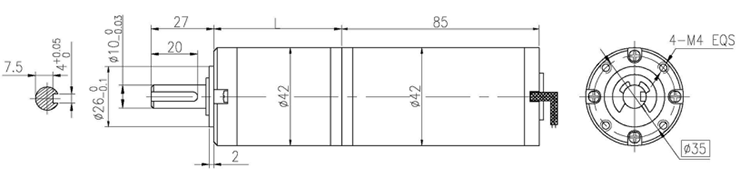

Dimensions
Motor Technical Data
TYPE
Rated
No-load
No-load
Rated
Rated
Output
Rated
Stall
Stall
voltage
speed
current
speed
torque
power
current
torque
current
VDC
r/min
mA
r/min
mN.m
W
mA
mN.m
A
52DY80-2430
24
3000
0.35
2300
0.075
18
1.5
0.32
6
52DY80-2440
24
4000
0.42
3200
0.08
27
2
0.446
7.5
Gear Motor Technical Data
52DY80-2430 DC Motor
Reduction ratio
3.60
4.25
13
15
18
47
55
65
77
168
198
234
276
326
Number of gear trains
1
1
2
2
2
3
3
3
3
4
4
4
4
4
Length(L) mm
45.7
45.7
57.2
57.2
57.2
68.5
68.5
68.5
68.5
79.8
79.8
79.8
79.8
79.8
No-load speed /min
833
706
231
200
167
64
55
46
39
18
15
13
11
9.2
Rated speed r/min
639
541
177
153
128
49
42
35
30
14
12
9.8
8.3
7.1
Rated torque N.m
0.24
0.29
0.79
0.91
1.1
2.6
3.0
3.6
4.2
8.2
10
11
13
16
N.m
Max. permissible load in a short time
6
6
25
25
25
50
50
50
50
60
60
60
60
60
52DY80-2440 DC Motor
Reduction ratio
3.60
4.25
13
15
18
47
55
65
77
168
198
234
276
326
Number of gear trains
１
1
2
2
2
3
3
3
3
4
4
4
4
4
Length(L) mm
45.7
45.7
57.2
57.2
57.2
68.5
68.5
68.5
68.5
79.8
79.8
79.8
79.8
79.8
No-load speed /min
1111
941
308
267
222
85
73
62
52
24
20
17
15
12
Rated speed r/min
889
753
246
213
178
68
58
49
42
19
16
14
12
9.8
Rated torque N.m
0.26
0.31
0.84
1.0
1.2
2.7
3.2
3.8
4.5
8.7
10
12
14
17
N.m
Max. permissible load in a short time
6
6
25
25
25
50
50
50
50
60
60
60
60
60
