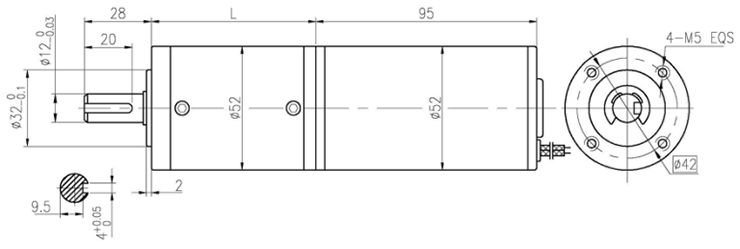

Dimensions
Motor Technical Data
TYPE
Rated
No-load
No-load
Rated
Rated
Output
Rated
Stall
Stall
voltage
speed
current
speed
torque
power
current
torque
current
VDC
r/min
mA
r/min
mN.m
W
mA
mN.m
A
52DY95-2430
24
3000
0.45
2300
0.12
29
1.9
0.54
9.3
52DY95-2440
24
4000
0.48
3400
0.11
39
2.7
0.73
12.3
Gear Motor Technical Data
52DY95-2430 DC Motor
Reduction ratio
3.60
4.25
13
15
18
23
47
55
65
77
96
121
153
187
220
260
307
409
Number of gear trains
1
1
2
2
2
2
3
3
3
3
3
3
4
4
4
4
4
4
Length(L) mm
45.7
45.7
57.2
57.2
57.2
57.2
68.5
68.5
68.5
68.5
68.5
68.5
79.8
79.8
79.8
79.8
79.8
79.8
No-load speed r/min
833
706
231
200
167
130
64
55
46
39
31
25
20
16
14
12
9.8
7.3
Rated speed r/min
639
541
177
153
128
100
49
42
35
30
24
19
15
12
11
8.8
7.5
5.6
Rated torque N.m
0.39
0.46
1.4
1.6
1.7
2.2
4.6
5.3
5.7
6.7
8.4
11
13
16
17
20
24
30
N.m
Max. permissible load in a short time
6
6
36
36
36
36
72
72
72
72
72
72
90
90
90
90
90
90
52DY95-2440 DC Motor
Reduction ratio
3.60
4.25
13
15
18
23
47
55
65
77
96
121
153
187
220
260
307
409
Number of gear trains
1
1
2
2
2
2
3
3
3
3
3
3
4
4
4
4
4
4
Length(L) mm
45.7
45.7
57.2
57.2
57.2
57.2
68.5
68.5
68.5
68.5
68.5
68.5
79.8
79.8
79.8
79.8
79.8
79.8
No-load speed r/min
1111
941
308
267
222
174
85
73
62
52
42
33
26
21
18
15
13
9.8
Rated speed r/min
944
800
262
227
189
148
72
62
52
44
35
28
22
18
16
13
11
8.3
Rated torque N.m
0.36
0.42
1.3
1.5
1.6
2.0
4.2
4.9
5.2
6.2
7.7
9.7
12
15
16
19
22
29
N.m
Max. permissible load in a short time
6
6
36
36
36
36
72
72
72
72
72
72
90
90
90
90
90
90
