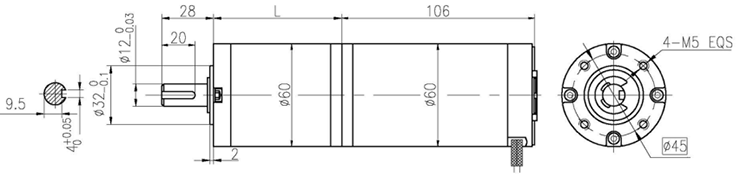

Dimensions
Motor Technical Data
TYPE
Rated
No-load
No-load
Rated
Rated
Output
Rated
Stall
Stall
voltage
speed
current
speed
torque
power
current
torque
current
VDC
r/min
mA
r/min
mN.m
W
mA
mN.m
A
60DY105-2420
24
2000
0.32
1550
125
20
1.6
0.55
6
60DY105-2430
24
3000
0.4
2500
120
30
2.2
0.72
10.8
Gear Motor Technical Data
60DY105-2420 DC Motor
Reduction ratio
3.6
4.25
13
15
18
23
47
55
65
77
96
121
153
187
220
260
307
409
Number of gear trains
1
1
2
2
2
2
3
3
3
3
3
3
4
4
4
4
4
4
Length(L) mm
37.8
37.8
49.5
49.5
49.5
49.5
60.8
60.8
60.8
60.8
60.8
60.8
71.9
71.9
71.9
71.9
71.9
71.9
No-load speed r/min
556
471
154
133
111
87
43
36
31
26
21
17
13
11
9.1
7.7
6.5
4.9
Rated speed r/min
431
365
119
103
86
67
33
28
24
20
16
13
10
8.3
7.0
6.0
5.0
3.8
Rated torque N.m
0.41
0.48
1.5
1.7
1.8
2.3
4.8
5.6
5.9
7.0
8.8
11
14
17
18
21
25
30
N.m
Max. permissible load in a short time
6
6
36
36
36
36
72
72
72
72
72
72
90
90
90
90
90
90
60DY105-2430 DC Motor
Reduction ratio
3.6
4.25
13
15
18
23
47
55
65
77
96
121
153
187
220
260
307
409
Number of gear trains
1
1
2
2
2
2
3
3
3
3
3
3
4
4
4
4
4
4
Length(L) mm
37.8
37.8
49.5
49.5
49.5
49.5
60.8
60.8
60.8
60.8
60.8
60.8
71.9
71.9
71.9
71.9
71.9
71.9
No-load speed r/min
833
706
231
200
167
130
64
55
46
39
31
25
20
16
14
12
9.8
7.3
Rated speed r/min
694
588
192
167
139
109
53
45
38
32
26
21
16
13
11
9.6
8.1
6.1
Rated torque N.m
0.39
0.46
1.3
1.5
1.7
2.2
4.1
4.8
5.7
6.7
8.4
11
12
15
17
20
24
30
N.m
Max. permissible load in a short time
6
6
36
36
36
36
72
72
72
72
72
72
90
90
90
90
90
90
