60DXE300K-78DY112

60DXE300K-78DY112

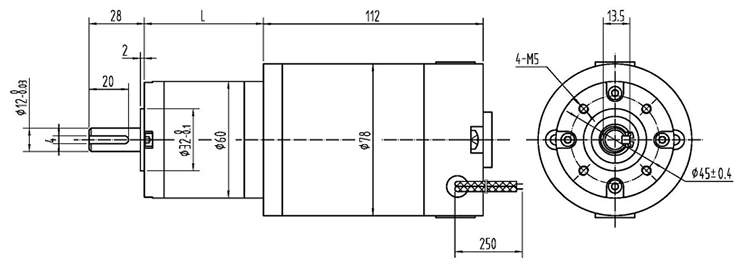

Dimensions



Motor Technical Data

TYPE Rated No-load No-load Rated Rated Output Rated Stall Stall
voltage  speed current speed  torque  power  current torque current
VDC r/min mA r/min mN.m W mA mN.m A
78DY112-2429 24 2900 0.55 2150 0.42 94 6.7 1.7 22

Gear Motor Technical Data


78DY112-2429 DC Motor

Reduction ratio

3.6

4.25

13

15

18

23

47

55

65

77

96

121

153

Number of gear trains

1

1

2

2

2

2

3

3

3

3

3

3

4

Length(L)   mm

37.8

37.8

49.5

49.5

49.5

49.5

60.8

60.8

60.8

60.8

60.8

60.8

71.9

No-load speed  r/min

806

682

223

193

161

126

62

53

45

38

30

24

19

Rated speed  r/min

597

506

165

143

119

93

46

39

35

28

22

18

14

Rated torque  N.m

1.4

1.6

4.4

5.1

6.1

7.8

14

17

20

24

29

30

30

          N.m

Max. permissible load in a short time

9

9

36

36

36

36

72

72

72

72

72

72

90
