15W Induction Gear Motor

15W Induction Gear Motor

15W 70mm

Specifications

Model • Type Lead Wire Type Output Voltage Frequency Current Starting Rated Rated Capacitor
power Torque Torque Speed
Pinion Shaft Round Shaft W V Hz A mN.m mN.m r/min μF
3IK15GN-A 3IK15A-A 15 1ph 100 50 0.35 90 125 1200 6
60 0.33 85 105 1450
3IK15GN-E 3IK15A-E 15 1ph 110 60 0.3 65 105 1450 5
1ph 120 0.32
3IK15GN-C 3IK15A-C 15 1ph 220 50 0.18 90 125 1200 1.2
1ph 230 0.2
3IK15GN-H 3IK15A-H 1ph 220 60 0.16 65 105 1450
1ph 230 0.15
3IK15GN-S 3IK15A-S 15 3ph 220 50 0.14 220 125 1200 -
60 0.12 180 105 1450

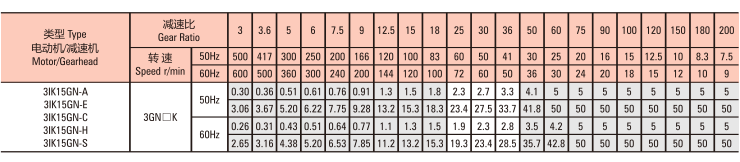

Allowance Torque Unit: Upside ( N.m ) / Belowside ( kgf.cm )
